.max
(V)
.min
(V)
.typ
(pF)
@8/20μs
(W)
@8/20μs
(A)
.max
(μA)
(kV)
Diagram
| Part No. | VRWM .max (V) | VBR .min (V) | CJ .typ (pF) | Ppp @8/20μs (W) | Ipp @8/20μs (A) | IR .max (μA) | Contact (kV) | Channel | Inner Diagram | Package | |

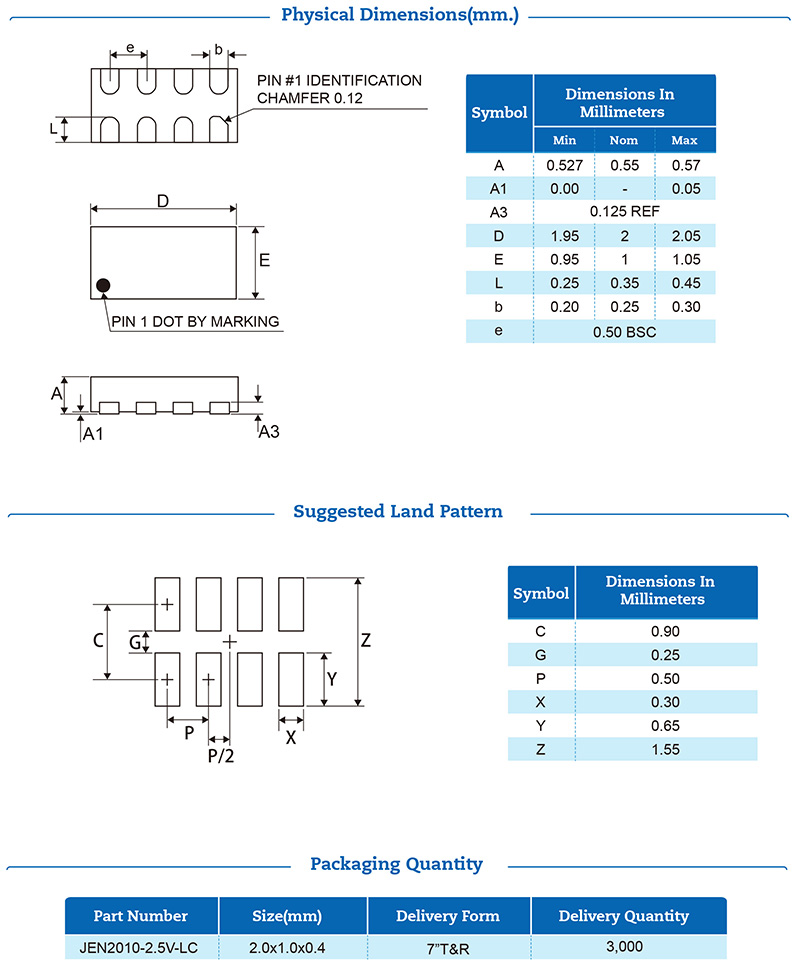

| JEN2010-2.5V-LC | 2.5 | 2.7 | 1.3 | 100 | 10 | 0.2 | ±30 | 1 | | DFN2010 | |
VRWM：Reverse Working Voltage
VBR：Snap-Back Voltage
CJ：Junction Capacitance
Ppp：Peak Pulse Power
Ipp：Peak Pulse Current
IR：Reverse Leakage Current
Contact：IEC 61000-4-2;Contact Discharge
